• Alteryx Server
  • All Versions
• Embedded MongoDB
  • All Versions

• Administrator permissions on the Server machine
• Server down time to perform downgrade
• Installer file for previous version of Server you are downgrading to
• MongoDB backup taken from the previous version that you are downgrading to
• If downgrading from version 2022.3+ to a version older than 2022.3, the backup Runtimesettings.xml file from prior to upgrade to version 2022.3+ is required: "C:\ProgramData\Alteryx\RuntimeSettings.22_2_legacy.xml"

The following expands on the Help page Downgrade Alteryx Server

Downgrade Alteryx Server

This procedure shows how to downgrade Alteryx Server to an older version that was running before in the same environment. For the purposes of this article we are downgrading from Alteryx Server 2021.2 to 2020.4 as an example.

1. Connect to the Alteryx Server. For multi-node environments, connect to the Controller Node hosting the embedded MongoDB
2. Open the Services.msc console and Stop the service. See How to start the Alteryx service but select Stop instead of Start

Note: If the service is stuck in a stopping state, its likely you have job running or queued. Please review this article for more info.

3. Open the Control Panel by searching for Control Panel  in the Start Menu

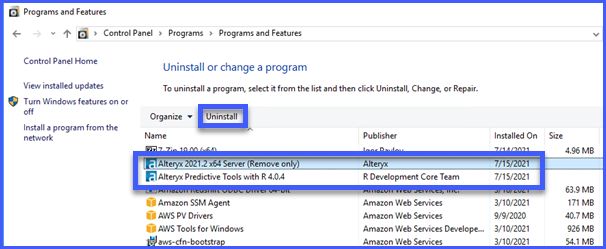

4. Click on Programs and Features and uninstall both Alteryx 2021.2 x64 Server and Predictive Tools. Pedictive Tools may uninstall with Server

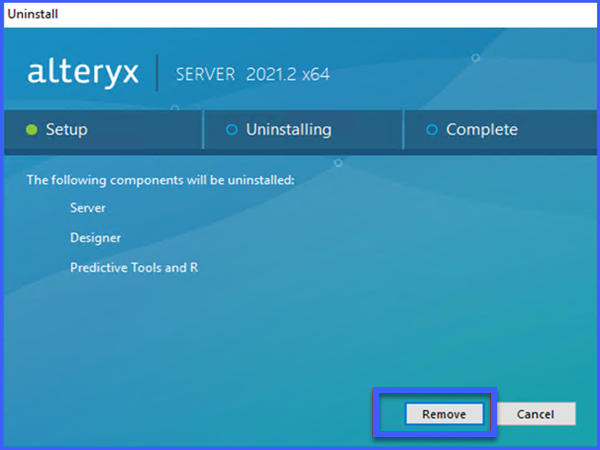

5. Click Remove and continue through any prompts to uninstall the program. Check the Control Panel again to confirm both Alteryx Server Package and Predictive tools have been uninstalled



6. If you are downgrading from version 2022.3+ to a version older than 2022.3, you will need to restore your original RuntimeSettings.xml
   1. Rename %ProgramData%\Alteryx\RuntimeSettings.xml to RuntimeSettings_rollback_bkp.xml
   2. Rename RuntimeSettings.22_2_legacy.xml to RuntimeSettings.xml
7. After uninstalling the current version of Server, run the Alteryx Server Installer for 2020.4.6 or whichever version your downgrading to. Right-click on the installer file and select Run as administrator

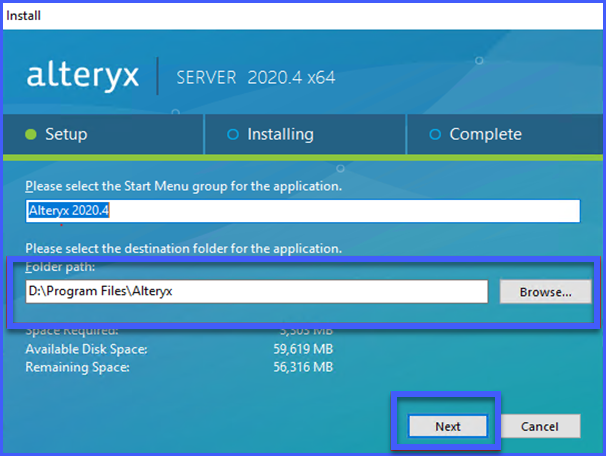

8. Select the folder path to install to if different from the default location, then select Next

6. Check the License Agreement and Click Next

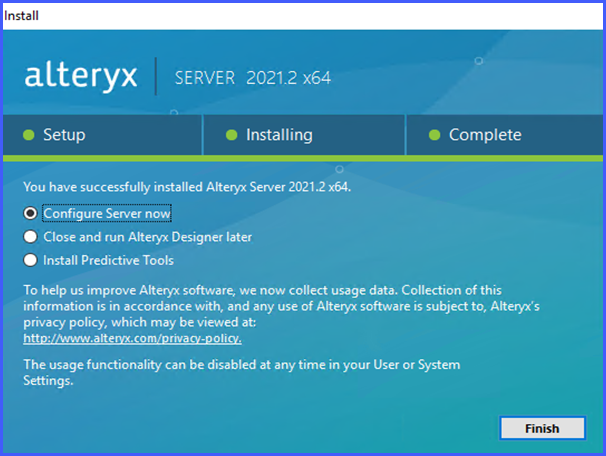

7. Once the installation is complete, you will be prompted to install Predictive tools as shown in the below image. If you intend on staying on this version and have workflows that rely on predictive tools, select Install Predictive Tools then Finish. If not, you can skip the Install Predictive Tools option and click Finish

Note: For multi-node environments, follow the same process on each node.


Post Downgrade Checks

• Check that the Server UI (Gallery) is accessible and the expected content such as users, workflows, and schedules have been successfully restored
• Check the Gallery logs for any unexpected locks. The logs' location can be found here. If you see the below errors, please contact Alteryx Support to investigate further

2020-05-11 15:53:06.564593,FATAL,18,QueueWorker,RunOnce,,,,LD-LT-241,,,,,,Lock obtain timed out: MongoDB.Lucene.MongoDocumentLock->Retry in (1) seconds...,"Lucene.Net.Store.LockObtainFailedException: Lock obtain timed out: MongoDB.Lucene.MongoDocumentLock-context, String name)

2020-05-11 15:33:59.700855,FATAL,20,QueueWorker,RunOnce,,,,LD-LT-241,,,,,,Failed to obtain IndexWriter lock.->Retry in (1) seconds...,System.Exception: Failed to obtain IndexWriter lock.
->   at Alteryx.Server.Models.BackgroundThread.QueueWorker.RunOnce()

Note: If you don't feel confident with the process please reach out to Alteryx Support for additional assistance.​​​
