Parse Error at char (n): Unknown variable "[variable_name]" Expression (#n)- Alteryx Designer
- All versions
- Tools Impacted
- Dynamic Rename
- Filter
- Formula
- Multi-Row Formula
This error happens when a field referenced in an expression is missing, renamed, or incorrectly formatted.
Common causes include:
- The field was removed or renamed upstream
- The field was deselected in a Select tool
- The field name contains extra spaces
- The expression uses incorrect syntax (for example, missing quotes for strings)

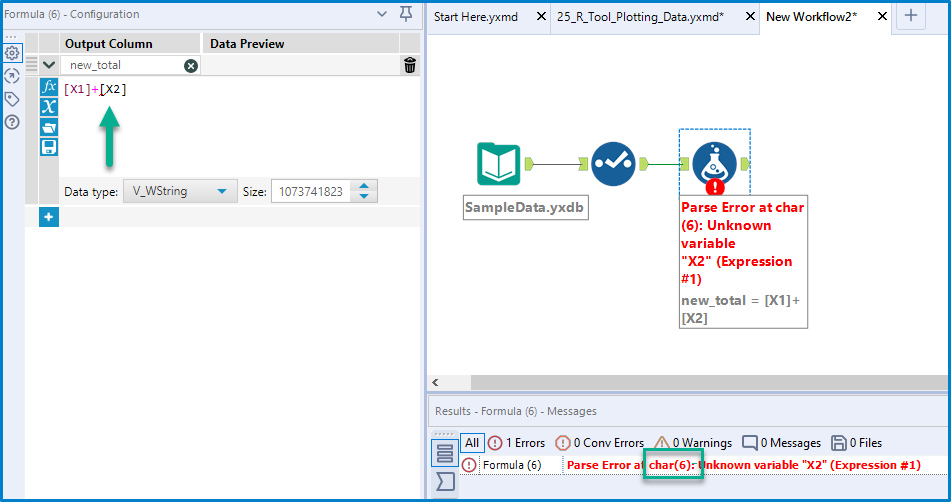

Let's analyze the image below as an example of the error:
Breaking down the error message, Parse Error at char (6) shows the issue starts at the sixth character in (Expression #1). It also shows that the missing variable in this dataset is "X2".
Another hint is that the text color of variable "X2" is black, indicating that it is not a recognized variable name.
When building a formula or using functions, verify that all string values are in quotes. Ensure variable names doesn't have leading or trailing spaces, [ variable_name] or [variable_name ]. Do not use brackets in variable names. These types of errors are especially common in nested conditional statements.
To resolve the issue, verify the configuration of the tools you used before the erroring tool to find out where the column went “missing.”

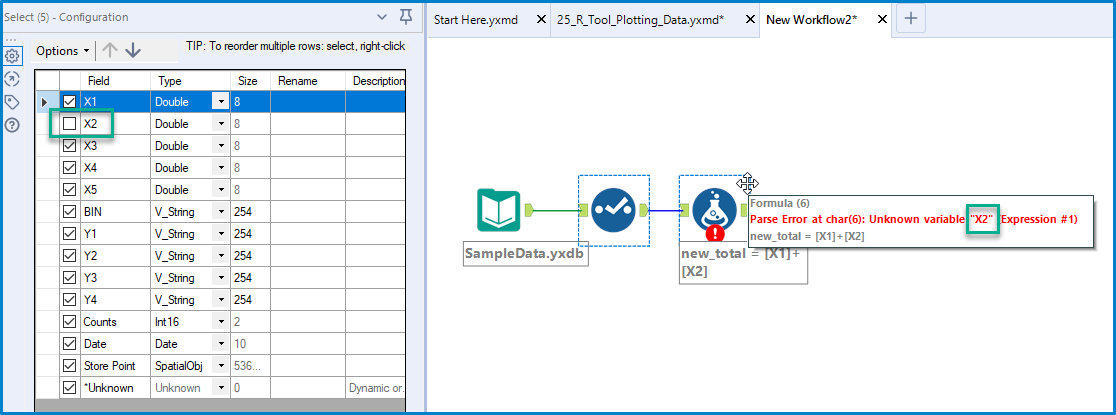

In the example below, the error was caused by deselecting the "X2" field in a Select tool. That is why this field could not be used by the Formula tool and caused the error.
To conclude, here is what to do to resolve the Parse Error at char (n): Unknown variable "[variable_name]" Expression (#n) error:
Confirm the field exists. Add a Browse tool before the tool throwing the error and check the incoming data:
- Make sure the field is present
- Make sure the name matches exactly (including capitalization and spacing)
If the field is missing, trace upstream:
- Check Select tools for deselected or renamed fields
- Review Formula or Dynamic Rename tools that may have changed the field name
If the field exists but still errors, fix formatting issues:
- Remove leading or trailing spaces in field names (for example, [Field ] or [ Field])
- Ensure string values use quotes (for example, "text")
- Use brackets only to reference fields, not inside field names
After correcting the field reference or restoring the missing field, run the workflow again to confirm the error is resolved.
