Requirements for Configuring Alteryx Server with a Load Balancer (or Reverse Proxy/VIP)

user

Created/Edited - 4/28/2026 by Sophia Cooper | Alteryx

How To

Address various configurations for Gallery behind a load balancer/reverse proxy. The configuration will depend on what authentication mechanism you are setting up, as well as if SSL is used.

Why Use a Load Balancer with Alteryx Server

A load balancer helps manage traffic to your Alteryx Server by spreading it across multiple machines, which improves performance and keeps things running smoothly if one machine goes down. In cloud environments, it’s especially useful because servers don’t always have public IP addresses, and using a load balancer makes it easier for users to connect using a friendly domain name instead of an IP.

It also gives you more flexibility and control. You can keep your servers in a private network for better security and make updates with little to no downtime. For example, you can set up a new server with the latest version, switch over when it’s ready, and avoid interrupting users.

Note that all Base Addresses when referred to are appending /gallery to the hostname/FQDN:

http(s)://hostname.domain.tld/gallery

All Web API Addresses when referred to are appending /webapi to the hostname/FQDN:

http(s)://hostname.domain.tld/webapi

Web API Address and Canonical Web API Address are only available from Server 2021.4 onwards.

Note some load balancers use health probes (sometimes call health checks) to validate gallery responses and can often fail or show a 307 temporary redirect error. If this happens try specifying the following:

/gallery/api/status/ping/

Environment

Alteryx Server

Procedure

Key for flowcharts

Green = SSL/TLS
Purple = no SSL/TLS

Built-in Authentication

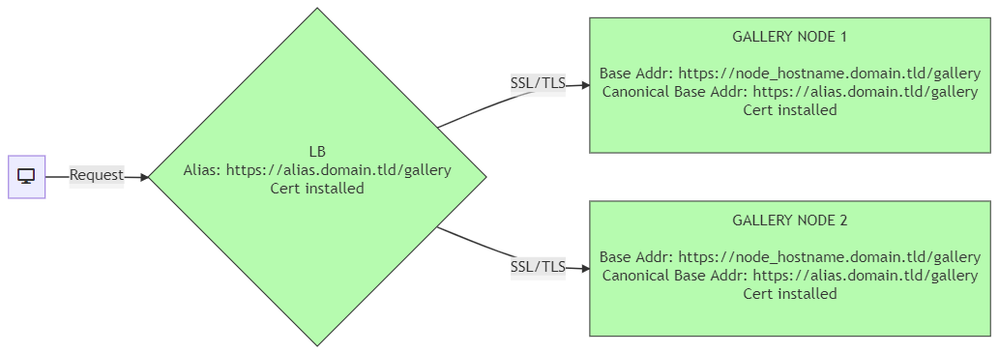

SSL/TLS - End to End

Set the Base Address and Web API Address on the Gallery nodes to the hostname/FQDN of the machine (https)
Set the Canonical Base Address and Canonical Web API Address in RuntimeSettings.xml to the load balancer alias (https) by adding corresponding XML tags "<CanonicalBaseAddress></CanonicalBaseAddress>, <WebApiCanonicalBaseAddress></WebApiCanonicalBaseAddress>"
- From Server 2022.2 onwards, the Canonical Base Address and Canonical Web API Address can be configured in Alteryx System Settings > Server UI > General, along with the Base Address and Web API Address
Certificates must be installed on the load balancer, and all Gallery nodes.

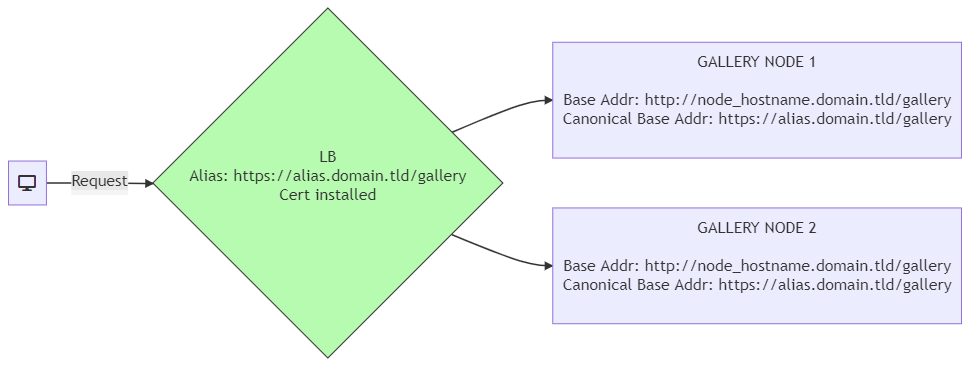

SSL/TLS - Terminating at the Load Balancer* (only available for Built-in Auth)

In this case the connections between the load balancer and the Gallery nodes communicate over http.

*When SSL terminates at the load balancer, users will not be able to use the Gallery API through the load balancer. If this is a requirement for your use case, you must have SSL go through to the Gallery nodes.

Set the Base Address and Web API Address on the Gallery nodes to the hostname/FQDN of the machine
Set the Canonical Base Address and Canonical Web API Address in RuntimeSettings.xml to the load balancer alias (https) by adding corresponding XML tags "<CanonicalBaseAddress></CanonicalBaseAddress>, <WebApiCanonicalBaseAddress></WebApiCanonicalBaseAddress>"
- From Server 2022.2 onwards, the Canonical Base Address and Canonical Web API Address can be configured in Alteryx System Settings > Server UI > General, along with the Base Address and Web API Address
Certificate must be installed on the load balancer

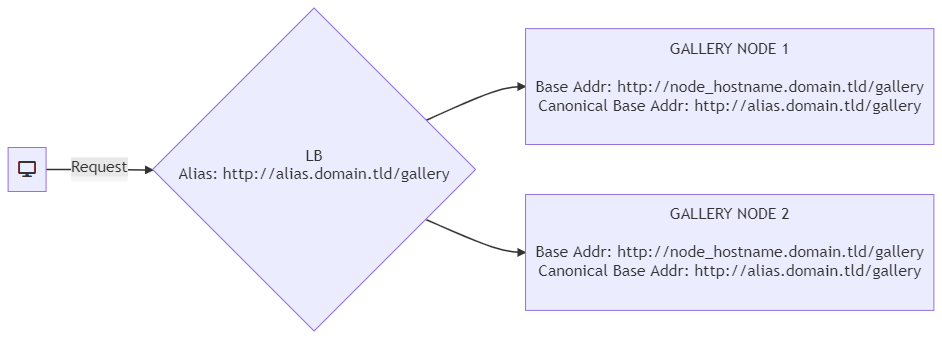

No SSL/TLS

Set the Base Address and Web API Address on the Gallery nodes to the hostname/FQDN of the machine
Set the Canonical Base Address and Canonical Web API Address in RuntimeSettings.xml to the load balancer alias by adding corresponding XML tags "<CanonicalBaseAddress></CanonicalBaseAddress>, <WebApiCanonicalBaseAddress></WebApiCanonicalBaseAddress>"
- From Server 2022.2 onwards, the Canonical Base Address and Canonical Web API Address can be configured in Alteryx System Settings > Server UI > General, along with the Base Address and Web API Address

Windows Authentication

Please note that for Windows Authentication a classic or network load balancer must be used. Application load balancers will not work with Windows Authentication.

SSL/TLS - End to End

Set the Base Address and Web API Address on the Gallery nodes to the hostname/FQDN of the machine (https)
Set the Canonical Base Address and Canonical Web API Address in RuntimeSettings.xml to the load balancer alias (https) by adding corresponding XML tags "<CanonicalBaseAddress></CanonicalBaseAddress>, <WebApiCanonicalBaseAddress></WebApiCanonicalBaseAddress>"
- From Server 2022.2 onwards, the Canonical Base Address and Canonical Web API Address can be configured in Alteryx System Settings > Server UI > General, along with the Base Address and Web API Address
Certificates must be installed on the load balancer and all Gallery nodes

No SSL/TLS

Set the Base Address and Web API Address on the Gallery nodes to the hostname/FQDN of the machine
Set the Canonical Base Address and Canonical Web API Address in RuntimeSettings.xml to the load balancer alias by adding corresponding XML tags "<CanonicalBaseAddress></CanonicalBaseAddress>, <WebApiCanonicalBaseAddress></WebApiCanonicalBaseAddress>"
- From Server 2022.2 onwards, the Canonical Base Address and Canonical Web API Address can be configured in Alteryx System Settings > Server UI > General, along with the Base Address and Web API Address

SAML Authentication

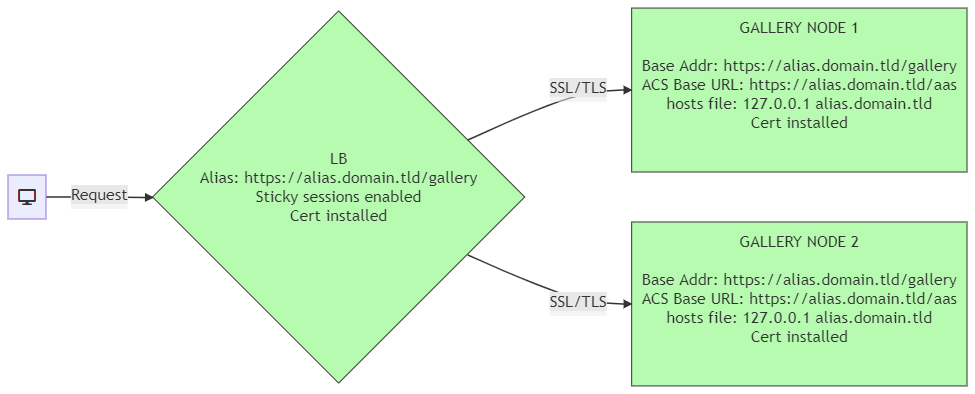

SSL/TLS - End to End

Set the Base Address on the Gallery nodes (as well as in your IDP) to the FQDN/DNS alias of the load balancer
Set the Web API Address on the Gallery nodes to the FQDN/DNS alias of the load balancer
Certificates must be installed on the load balancer and all Gallery nodes
Edit the hosts file to route the FQDN of the load balancer to the loopback adapter:

127.0.0.1    alias.domain.tld

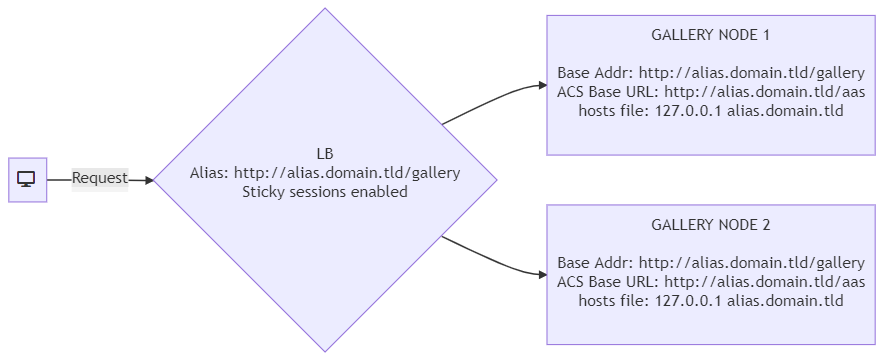

No SSL/TLS

Set the Base Address on the Gallery nodes (as well as in your IDP) to the FQDN/DNS alias of the load balancer
Set the Web API Address on the Gallery nodes to the FQDN/DNS alias of the load balancer
Edit the hosts file to route the FQDN of the load balancer to the loopback adapter:

  127.0.0.1 alias.domain.tld

Additional Information
