Unhandled Exception Sequel Viewpoint Loader Breaks Designer
user

Created/Edited - 5/8/2026 by Brady Weatherly | Alteryx

Summary

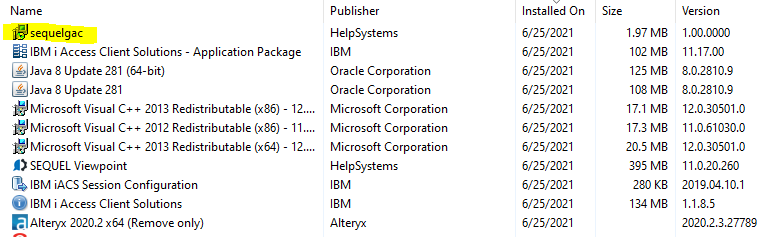

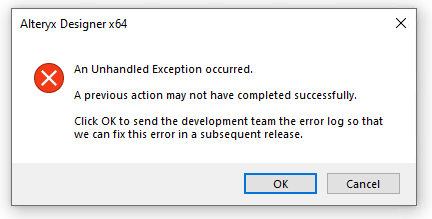

The Sequel Viewpoint software is breaking Designer from loading.
Environment
  • Alteryx Designer
    • 2020.2+
    • Sequel ViewPoint


Cause

The Sequel Viewpoint software is installing an older version of Newtonsoft.Json into the .NET global assembly cache. This is forcing Designer to load the 12.0.0 version of the Newtonsoft.Json.dll from the  .NET GAC.  Because Designer uses version 12.0.1 it is causing random errors when loading.

https://docs.microsoft.com/en-us/troubleshoot/dotnet/framework/install-assembly-global-assembly-cache

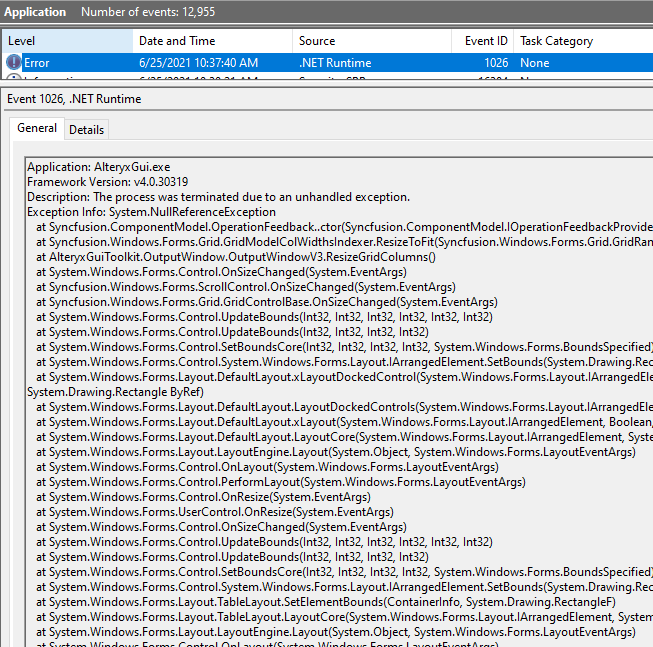

Message: 'Newtonsoft.Json.Linq.JObject' does not contain a definition for 'UseClassicMode



Resolution

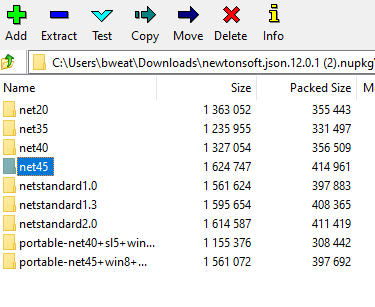

Download the 12.0.1 version from the link below and use the .net45 version and copy it over the 12.0.0 in the C:\Windows\assembly\GAC_MSIL\Newtonsoft.Json.

NuPKG files are just zip files, so anything that can process a zip file should be able to process a nupkg file, i.e, 7zip.


https://www.nuget.org/packages/Newtonsoft.Json/12.0.1
